Airbags

Firestone Ride-Rite airbags are designed to fit between a vehicles chassis and the axle / leaf spring to provide levelling control, front-to-rear and side-to-side, when a vehicle is under load. The heavy duty double convoluted airbags are a two ply, reinforced rubber bellows. You can adjust for varying loads and road conditions by simply inflating or deflating, just like inflating a tyre.

Firestone Ride-Rite

Firestone Ride-Rite airbags provide extra support for leaf suspensions in light trucks, vans, utes, 4WD’s, SUV’s, caravans and motorhomes. Airbags are used for front-to-rear and side-to-side levelling control of a vehicle. This enables a vehicle to “level up” when carrying heavy, uneven loads and when towing caravans, boats and trailers.

Firestone Ride-Rite airbags will:

  • Maintain a level vehicle - adjustable
  • Maximise the safe load carrying capacity
  • Increase vehicle stability
  • Improve steering and balance
  • Improve ride quality
  • Greatly reduce “bottoming out”
  • Keep headlights aimed on the road
  • Reduce tyre wear

Firestone Coil-Rite

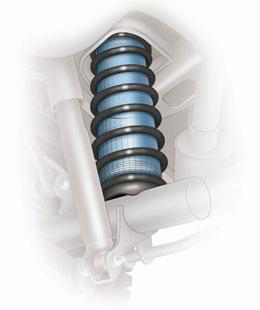

Firestone Coil-Rite airbags are designed to fit inside existing coil springs to provide levelling control to a vehicle when under load. These airbags are made of durable polyurethane, providing years of comfort and stability to a vehicle. You can adjust for varying loads and road conditions by simply inflating or deflating, just like inflating a tyre.

Firestone Coil-Rite airbags provide extra support for front and rear coil springs in cars, vans, 4WD’s, SUV’s and motorhomes. Airbags are used for front-to-rear and side-to-side levelling control of a vehicle. This enables a vehicle to “level up” when towing caravans, boats and trailers or when a vehicle is carrying heavy, uneven loads.

Firestone Coil-Rite airbags will:

  • Maintain a level vehicle - adjustable
  • Maximise the safe load carrying capacity
  • Increase vehicle stability
  • Improve steering and balance
  • Improve ride quality
  • Greatly reduce “bottoming out”
  • Reduce coil suspension fatigue
  • Keep headlights aimed on the road
  • Reduce tyre wear

On-Air

On-Air is full air suspension applied to vehicles with coil spring suspension. The coil springs are removed totally and are replaced with airbags. The airbags are heavy duty two ply, reinforced rubber rolling sleeves, the same construction as used on heavy duty trucks and buses. You can adjust for varying loads and road conditions by simply inflating or deflating, just like inflating a tyre.

On-Air airbags provide a superior, adjustable full air suspension for most vans, utes, 4WD’s, and SUV’s. Airbags are used for front-to-rear and side-to-side levelling control of a vehicle. This enables a vehicle to “level up” when towing caravans, boats and trailers or when a vehicle or truck is carrying heavy, uneven loads - providing full adjustability for off-road or passenger loading.

On-Air airbags will:

  • Maintain a level vehicle - adjustable
  • Maximise the safe load carrying capacity
  • Increase vehicle stability
  • Improve steering and balance
  • Improve ride quality
  • Greatly reduce “bottoming out”
  • Reduce coil suspension fatigue
  • Keep headlights aimed on the road
  • Reduce tyre wear

Firestone Air-Rite

Firestone Air-Rite kits and components provide an instant air source for all air suspension kits and products to allow quick inflation and deflation for various road and load conditions. Our Firestone Air-Rite air control systems can also give you the optional advantage of finger-tip levelling control for your vehicle or automatic height management.

Air-Rite in-cab controls allow users of leaf-spring equipped work vehicles to effortlessly adjust air helper suspensions to cope with different roads, loads and site conditions.

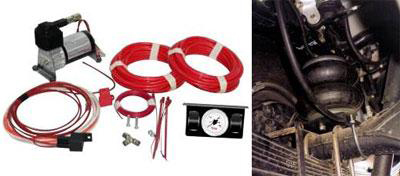

Left: Dual Air Control Kit, Right: Air Suspension installed

The dual air control kit from airbag man - distributed in NSW by All-air suepnsion - further enhances the usability and performance of a vehicles fitted with Firestone Ride-Rite air springs located between the chassis and rear suspension of leaf- spring equipped vehicles.

The dual air control kit allows the user to individually inflate or deflate either or both of the two air springs at the touch of a switch, without leaving the cab to manually inflate or deflate the springs to cope with changing road, load and ride conditions. This allows for custom control of front to rear or side to side levelling, which the user can tailor to their specific needs from inside the cab, rather than having to go to the nearest service station or get out to use a compressor.

The Air-Rite kit, made from quality Firestone components, can easily be added to existing suspension products, or included in a full Airbag Man package. “The Air-Rite kit is useful for a huge variety of applications and is particularly useful for users with unique and uneven loads, where they are towing or where a flat and even ride benefits braking safety. If the load is all on one side, it’s easy to just push a button and give that side some extra height to compensate for the additional weight,” says All-Air Suspension General Manager, Mr James Maslin.

The kit comes with three high quality features:

  • A 12V air compressor that provides up to 130 psi (0.64 cfm at 60psi)
  • A fitting kit with quick fit push-to-connect air fittings, easy to use electrical connections, fuse and holder and cable ties
  • A control panel with individual switches for dual control, dual needle gauge to monitor pressure, back lit capability and an easy install panel

The Air-Rite kit is designed to be an additional upgrade to other suspension kits, including Ride-Rite for leaf sprung vehicles and Coil-Rite coil sprung vehicles. These kits are designed to increase vehicle stability, maintain correct vehicle height and reduce wear on the suspension by optimising its performance. The Air-Rite kits make suspension adjustment quicker and easier.

“The peace of mind these kits give users is outstanding. If the terrain changes or some of the load is moved or unloaded, they can cater to the changed conditions and instantly adjust the suspension from inside their vehicle,” says Mr Maslin.

The kits are applicable to a large range of vehicles, including commercial vehicles, vans, utes and trucks. They can be added as an upgrade to existing Coil-Rite or Ride-Rite suspension helper kits.

All Air Suspension has specialised suspension kits for a range of different vehicles - to see if they have the right fit for you, contact Wholesale Suspension for further details.

POLYAIR RED SERIES

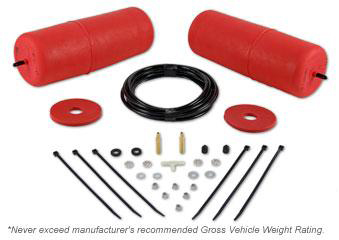

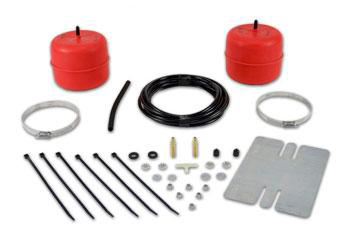

Polyair Red Series bags are designed to fit inside the coil of a coil sprung vehicle to assist the spring in supporting whatever load is placed in the vehicle (within manufacturers recommended gross vehicle weight rating). They help in eliminating “bottoming out” and improve ride, handling and stability. The air adjustability allows you to tune the ride you want, whether you’re hauling, towing or riding light! Made with tough, long-lasting, moulded polyurethane.

Features and benefits of the Polyair Red Series

  • Add support to rear springs on many vehicles.
  • Improves muscle car traction for drag racing.
  • Improves ride and handling for full-size vans with front coils.
  • Fits open coil springs, front or rear.
  • Up to 450kg (1,000 lbs) of levelling capacity.*
  • Air adjustable for the ride you want.
  • Reduces roll, sway and “bottoming out.”
  • Quick connecting easy-to-use engineered polymer air fittings.
  • Tough moulded polyurethane construction.
  • One year 20,000km limited warranty.

POLYAIR BELLOWS

Handle big loads with full-time load support, improve safety and ride quality.

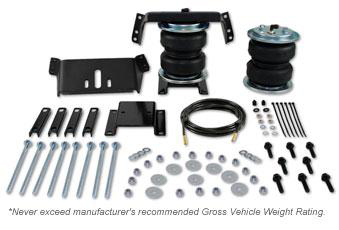

Polyair Bellow kits are our heaviest-rated kits for hauling or towing heavy loads.

They’re engineered and built with reinforced rubber bellows and end caps made of ultra-high strength Zytel(r) nylon, strong as steel, but it weighs less and is corrosion proof. It’s all held together with our exclusive Shur-Grip crimp for lasting strength.

Features and benefits of Bellows System

  • Brute strength our toughest add-on bags for your heaviest loads, right up to manufacturer recommended gross vehicle weight rativng
  • Rugged 2-ply fabric reinforced air springs are built like a tire.
  • Fully adjustable, to keep your vehicle riding level and comfortable, whether loaded, towing or light, on any road conditions!
  • Engineered to be easy to install in two hours or less.
  • Many popular kits require no drilling!
  • Up to 2200kg (5,000 lbs) of leveling capacity.*
  • Air adjustable from 5 to 100 psi, for maximum comfort to maximum load support.
  • Easy to install, with full illustrated instructions.
  • Quick connecting easy-to-use engineered polymer air fittings.
  • Tough, reinforced air bellows for long-lasting strength.
  • One year, 20,000 warranty.

POLYAIR DRAG-RACING SYSTEM

The Polyair Drag racing system is an inexpensive solution to the common drag racing problem of torque vs. traction equalization. Consisting of two durable, easy to install and use pressurized cylinders, this kit provides up to 450 kilograms of suspension-altering power on each rear wheel (individually adjustable), ensuring racers achieve maximum potential traction.

POLYAIR SLEEVE SYSTEM

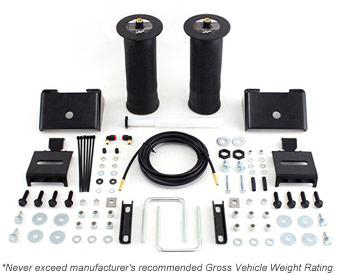

The Polyair Sleeve system is an alternative solution for a limited range of vehicles. These adjustable air springs work with your existing leaf spring suspension to provide up to 900kg (2,000 lbs.) of load-levelling capacity. Inflate when carrying a heavy load, deflate when riding empty.

Features and benefits of the Polyair Sleeve System

  • Up to 900kg (2,000 pounds) of leveling capacity.*
  • Air adjustable from 5 to 100 psi for maximum comfort to maximum load support.
  • Exclusive alignment tool and full illustrated instructions make installation easy!
  • Quick connecting easy-to-use engineered polymer air fittings.
  • One year, 20,000km warranty.

Every Polyair kit is complete with air springs, air lines, brackets, fittings, hardware and instruction
